Exaco Solar Powered Exhaust fan and Ventilation System
The Exaco solar powered exhaust fan is a boon for greenhouses, harnessing the sun’s energy to power its ventilation system. This eco-friendly solution reduces reliance on electrical power, cutting down on both energy costs and carbon emissions. Its self-sufficient operation, coupled with a thermostat-controlled environment, ensures optimal growing conditions for plants.
The fan’s easy installation and battery backup capability (battery not included) further enhance its appeal, offering a sustainable and cost-effective way to maintain a healthy greenhouse climate.
The Exaco Solar Ventilation System allows for off the grid operation, getting power to your greenhouse where you need it.
The system is easily retrofitted to other non- Exaco greenhouses as well. The system can easily be set-up to run through a battery to allow for power on demand , with or without the suns power (especially during night time).
Benefits, features and Specifications of Exaco Solar Powered Exhaust and Ventilation System
🌳 Panel Size: 29.5" x 20" x 1", CE approved.
🌳 Fan size: 16" x 16" x 8.5" deep.
🌳 Panel includes 20' power cord.
🌳 Thermostat included.
🌳 Exhaust Fan: has a brushless motor (lifetime guaranty),
🌳 12~26DC & 1000 RMP.

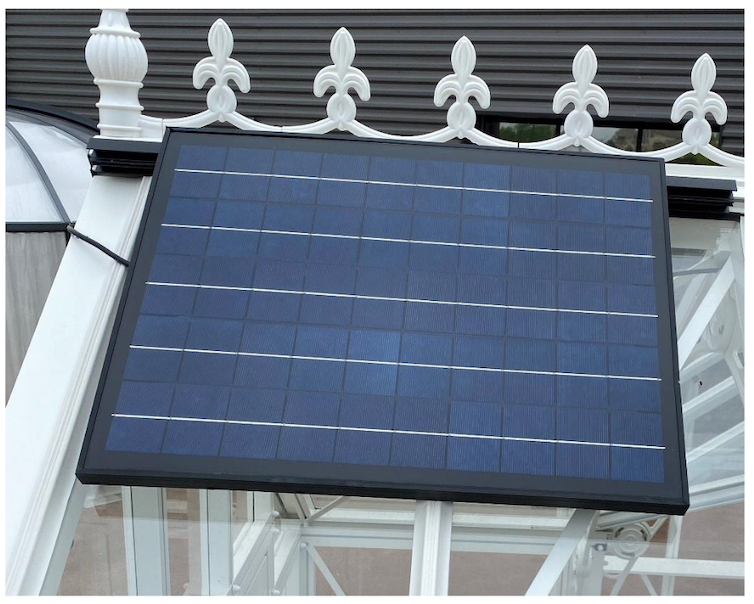

🌳Solar panel specs:
🌞 Max Power ~50W,
🌞 Max Voltage 25.5 V,
🌞 Max Power Curent 1.97A,
🌞Open Circuit Voltage 30.0V,
🌞 short Circuit Current: 2.1A ;

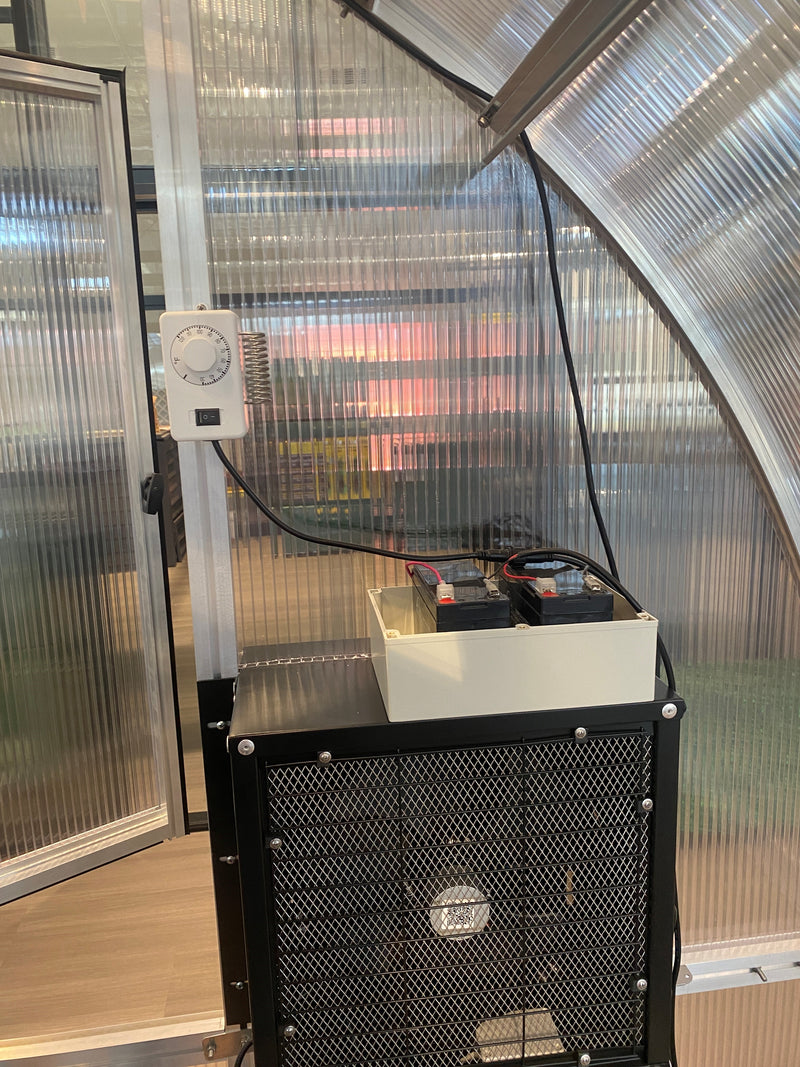

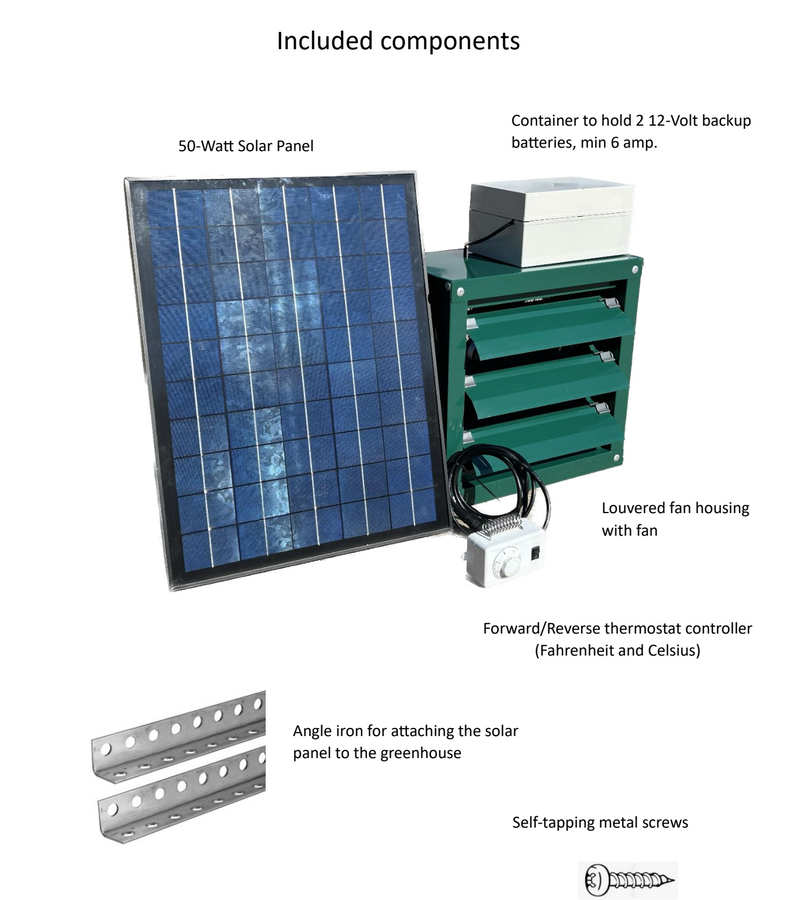

Kit includes case for two 12 volt back up batteries. Batteries not included.
Why do you need a solar powered exhaust fan for your greenhouse?
Our own unit has been continuously running since installed in March 2023. These are specially made for us (for greenhouses) by factory producing attic exhaust fans for years (sold through all major retailers).
The Exaco solar powered exhaust fan offers several benefits, particularly for greenhouse environments:
🌳Energy Efficiency: It operates entirely on solar power, which means it doesn’t require electricity from the grid. This can lead to significant energy savings and reduce the carbon footprint of the greenhouse operation.
🌳 Cost-Effective: Since it’s powered by the sun, there are no ongoing electricity costs. After the initial investment, the fan operates at no additional cost. You can also attach other accessories (heater, lights etc) to run through solar power and also batteries (not included).
🌳 Environmentally Friendly: Solar power is a clean, renewable energy source. Using this fan contributes to a reduction in greenhouse gas emissions.
🌳 Easy Installation: The fan is designed for easy installation and doesn’t require complicated wiring.
🌳 Temperature Regulation: With its thermostat controller, the fan helps maintain optimal temperatures within the greenhouse, which is crucial for plant growth and health.
🌳 Versatility: The ability to change the airflow direction allows for flexibility in how the fan is used, whether it’s for bringing fresh air into the greenhouse or exhausting hot air out.
🌳 Battery Backup: The option to connect batteries means the fan can continue to operate during periods of low sunlight (also during night time), ensuring continuous ventilation. The fan doesn't include batteries, however, it comes with a case for batteries.
🌳 Durability: The fan comes with a lifetime warranty on its brushless motor, indicating a long-lasting, reliable product.
Overall, the Exaco solar powered exhaust fan is a sustainable and economical choice for maintaining the right climate in a greenhouse without relying on traditional power sources.
* Disclaimers: Adaptations might be needed when installed in ANY greenhouse. This fan can be installed in a polycarbonate greenhouse. The polycarbonate panel will need to be cut to make sure the fan fits properly. If you decide to put it in a glass greenhouse, you won't be able to cut the glass because it will shatter. We recommend using a lexan panel to fill the gaps. This can be purchased in a local hardware store.
16" x 16" x 8.5" deepFan size
29.5" x 20" x 1", CE approvedSolar panel
About 50 W maxSolar panel output
Exaco greenhouses, and retrofits to other brandsFits
Lifetime on the brushless motorWarranty
Exaco · Accessory
Overview
Ventilate your greenhouse with the sun, no wiring from the house required. This solar ventilation system runs off the grid: a solar panel of about 50 W powers a 16" exhaust fan, and the included thermostat keeps conditions right for your plants. There are no ongoing electricity costs, and it is easy to retrofit to non-Exaco greenhouses.
Put two 12 volt batteries (not included) in the included battery case and the fan can keep running when the sun is low or at night. The airflow direction can be changed, so the fan can bring fresh air in or push hot air out. The brushless motor carries a lifetime warranty, and our own unit has been running continuously since March 2023.
Our tip: in a polycarbonate greenhouse, the panel is cut to fit the fan. Glass would shatter, so in a glass greenhouse fill the opening with a Lexan panel from your local hardware store.
Why customers choose it
Ventilation powered by the sun
Off-grid power
A solar panel runs the fan without any connection to the grid.
Thermostat included
Keeps the greenhouse at a comfortable temperature for your plants.
Battery backup ready
A case for two 12 volt batteries lets the fan run at night or in low light.
Built to last
A brushless motor with a lifetime warranty.
The details
Specifications
Dimensions
Fan size
16" x 16" x 8.5" deep
Solar panel
29.5" x 20" x 1", CE approved
Power cord
20 ft, included with the panel
Electrical
Solar panel output
About 50 W max
Max voltage
25.5 V
Max power current
1.97 A
Open circuit voltage
30.0 V
Short circuit current
2.1 A
Fan motor
Brushless, 12 to 26 V DC, 1000 RPM
Battery backup
Case for two 12 volt batteries (batteries not included)
Materials
Color
Black or green
Fits
Fits
Exaco greenhouses, and retrofits to other brands
Glass greenhouses
Use a Lexan panel to fill the opening
Warranty
Warranty
Lifetime on the brushless motor
Plan, build and permit
Technical documents
Every manual, drawing and certificate is hosted on our own servers, so the links always work. Open on any device or save a copy for your builder or permit office.
Yes, if you add batteries. The kit includes a case for two 12 volt backup batteries (not included), which let the fan run during low sunlight and at night.
Can I use it on a greenhouse that isn't made by Exaco?
Yes. The system is easily retrofitted to other greenhouses. In a polycarbonate greenhouse you cut the panel to fit the fan. In a glass greenhouse, use a Lexan panel to fill the gap, since glass cannot be cut.
Can it bring fresh air in as well as exhaust?
Yes. The airflow direction can be changed, so it can bring fresh air into the greenhouse or exhaust hot air out.
What warranty does it have?
The brushless motor comes with a lifetime warranty.
Is shipping really free?
Yes. Shipping is free. Locations with limited access, such as islands, are rare exceptions that may carry an extra fee, and we'll tell you before anything ships.
Do you offer a price match?
Yes. If you find the same greenhouse for less from an authorized dealer, call or email us with the offer and we'll review it.
Are you an authorized retailer?
Yes. Mulberry Greenhouses is an authorized retailer, so your greenhouse is covered by the full manufacturer warranty.
